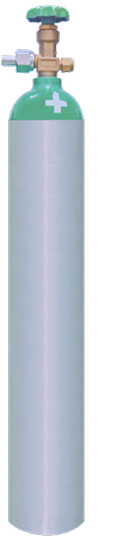

Oxygen Cylinder
Oxygen CylinderAn oxygen cylinder stores and carries compressed oxygen safely and is used in industrial welding and cutting, medical centers and laboratories. It is supplied in 5, 10, 20 and 40 liter volumes (industrial and laboratory), to ISO 9809 and with a standard CGA 540 valve, and is suitable for professional and industrial use.
Supply options: purchase, refill or exchange
Cylinder with gas, ready for delivery
You have a cylinder and only need gas
📦
🔄
Without gas, to be filled by the buyer
All cylinders are checked before delivery for the condition of the body, the valve and the hydrostatic test date.
Empty cylinder — without gas, to be filled by the buyer
Body material:
- Material: steel | Standard: ISO, DIN
- Test pressure: 225 bar | No gas inside
- Suitable for gas producers and refilling companies
- Wholesale orders | Delivery across Iran
For wholesale price quotes, use the side form or WhatsApp
You have a cylinder and only need gas
Send your cylinder for refilling: send us your cylinder and we will return it after refilling.
Cylinder rental (deposit): take one of our cylinders on deposit and return it after use.
Contact us to arrange refilling or rental
Specifications Table
| Cylinder volume | Cylinder color | Working pressure | Test pressure | Diameter | Weight | Height | Valve type | Supply condition | Refillable | Country of manufacture |
|---|---|---|---|---|---|---|---|---|---|---|
| 5 L | White | 150 bar | 250 bar | 140 mm | 8.2 kg | 455 mm | Right-hand thread | New and sealed | Yes | China |
| 10 L | White | 150 bar | 250 bar | 840 mm | 13.6 kg | 840 mm | Right-hand thread | New and sealed | Yes | China |
| 20 L | White | 150 bar | 250 bar | - | 29 kg | - | Right-hand thread | New and sealed | Yes | China |
| 40 L | Black | 150 bar | 250 bar | 219 mm | 50 kg | 1,350 kg | Right-hand thread | New and sealed | Yes | China |
| 40 L | White | 150 bar | 250 bar | 219 mm | 50 kg | 1,350 mm | Right-hand thread | New and sealed | Yes | China |
Which supply method suits you best?
Besides the options above, two more points will help you choose correctly:
- New cylinder vs. ordinary full cylinder: if you are buying a cylinder for the first time or have a long-term project, a brand-new sealed cylinder (not just a filled one) is the safer choice.
- Cylinder exchange vs. refilling: for customers with continuous consumption (industries and hospitals) who don’t want production to stop, exchanging an empty cylinder for a full one is faster than waiting for the same cylinder to be refilled.
All oxygen cylinders are checked before delivery for appearance, valve condition and technical specifications, and the hydrostatic test is carried out free of charge.
Which oxygen cylinder volume is right for you?
Industrial
Laboratory/Medical
Custom
Quality, standards and supply guarantee
A stable, high-quality supply of oxygen cylinders is as important as the product itself, especially for customers with continuous consumption such as factories, hospitals and petrochemical companies. Every cylinder is checked before delivery for the condition of the body and valve and compliance with ISO 9809, and the hydrostatic test is carried out free of charge. For wholesale orders and customers who need continuous supply (factories, hospitals, tender companies), a periodic supply contract can be discussed on request. At every stage of the purchase, our sales team is available to advise and help you choose the right volume or type.
Required accessories
The following equipment is needed for the safe use of an oxygen cylinder:
Flowmeter: controls and displays the outlet flow rate
Pressure gauge: shows the pressure inside the cylinder and the outlet pressure
Regulator: sets the outlet pressure to match the user’s needs
Cylinder pallet: for safely moving and storing several cylinders at once, suitable for wholesale orders and factories
Cylinder valve and cap: available both pre-installed on the cylinder and separately for replacement
You can see full specifications and buy this equipment on the cylinder accessories and welding and cutting equipment page.
When buying a cylinder, be sure to check the hydrostatic test date, the standard gas color, the valve type (CGA), the body material, a working pressure of at least 150 bar, and that there is no damage or rust.
All cylinders are made to ISO 9809 and checked before delivery for the condition of the body, the valve and the hydrostatic test date; this test is carried out free of charge.
Yes. For wholesale orders and customers with continuous consumption, a regular delivery schedule and special terms can be arranged; the 50-liter size can also be supplied to order this way. Contact our sales team to discuss your needs.
The main difference is the purity grade and the permitted use. Industrial cylinders are used for welding and cutting, medical cylinders must have a specified purity and be used under the supervision of medical centers, and laboratory cylinders provide the highest purity for sensitive applications. The three types can be told apart by their colors (white for medical/laboratory, black for industrial). For more details, read our article on the difference between medical and industrial oxygen cylinders.
